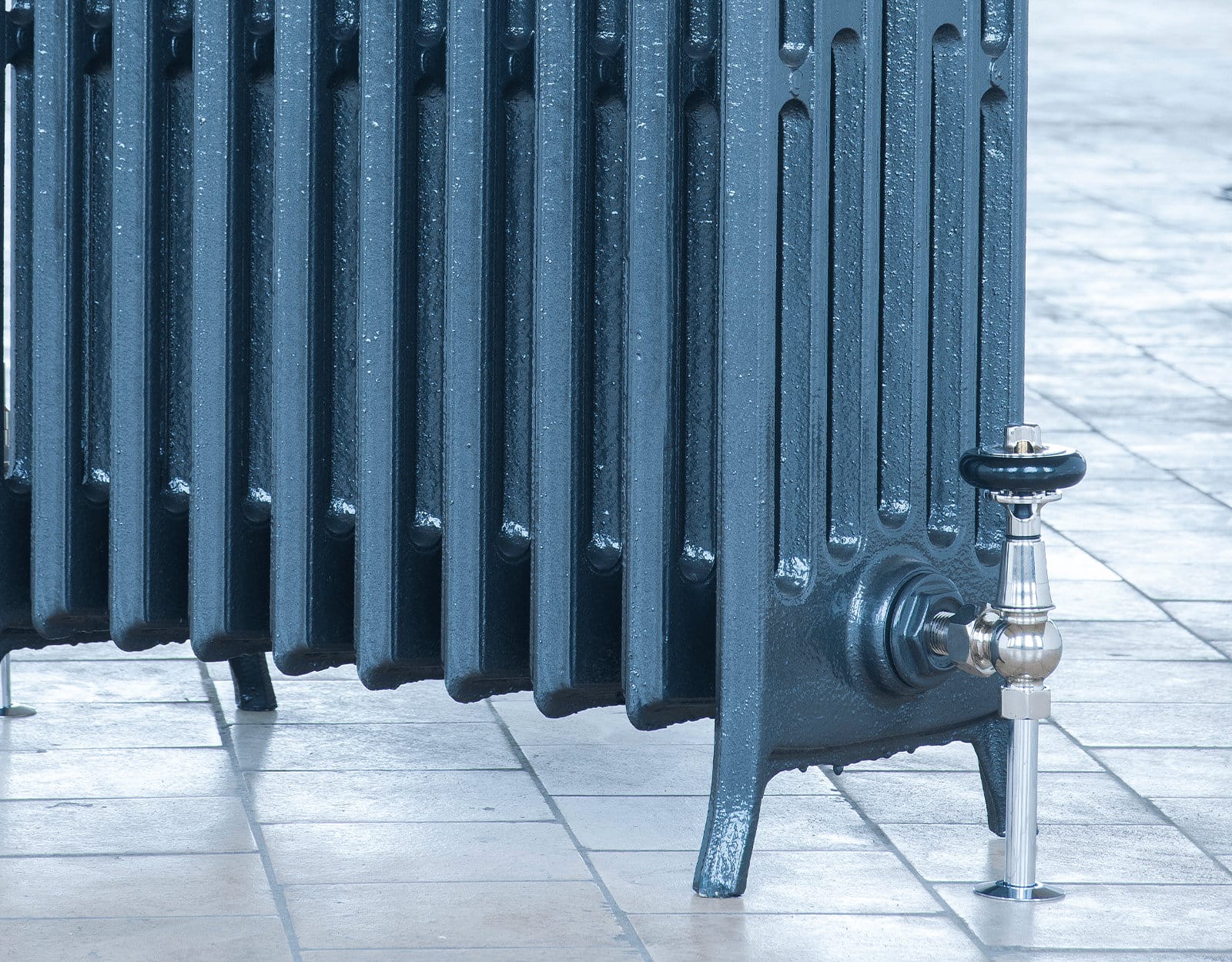

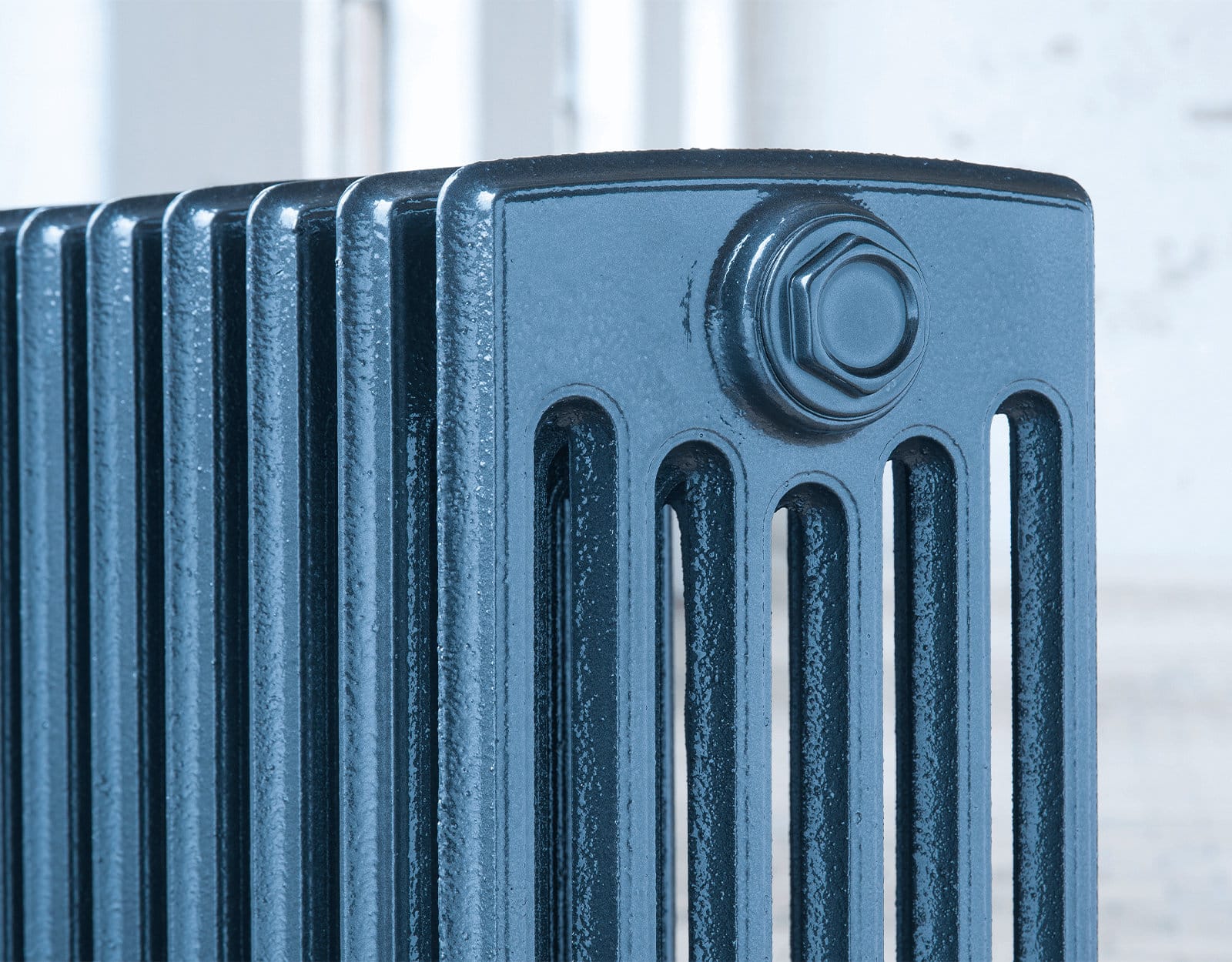

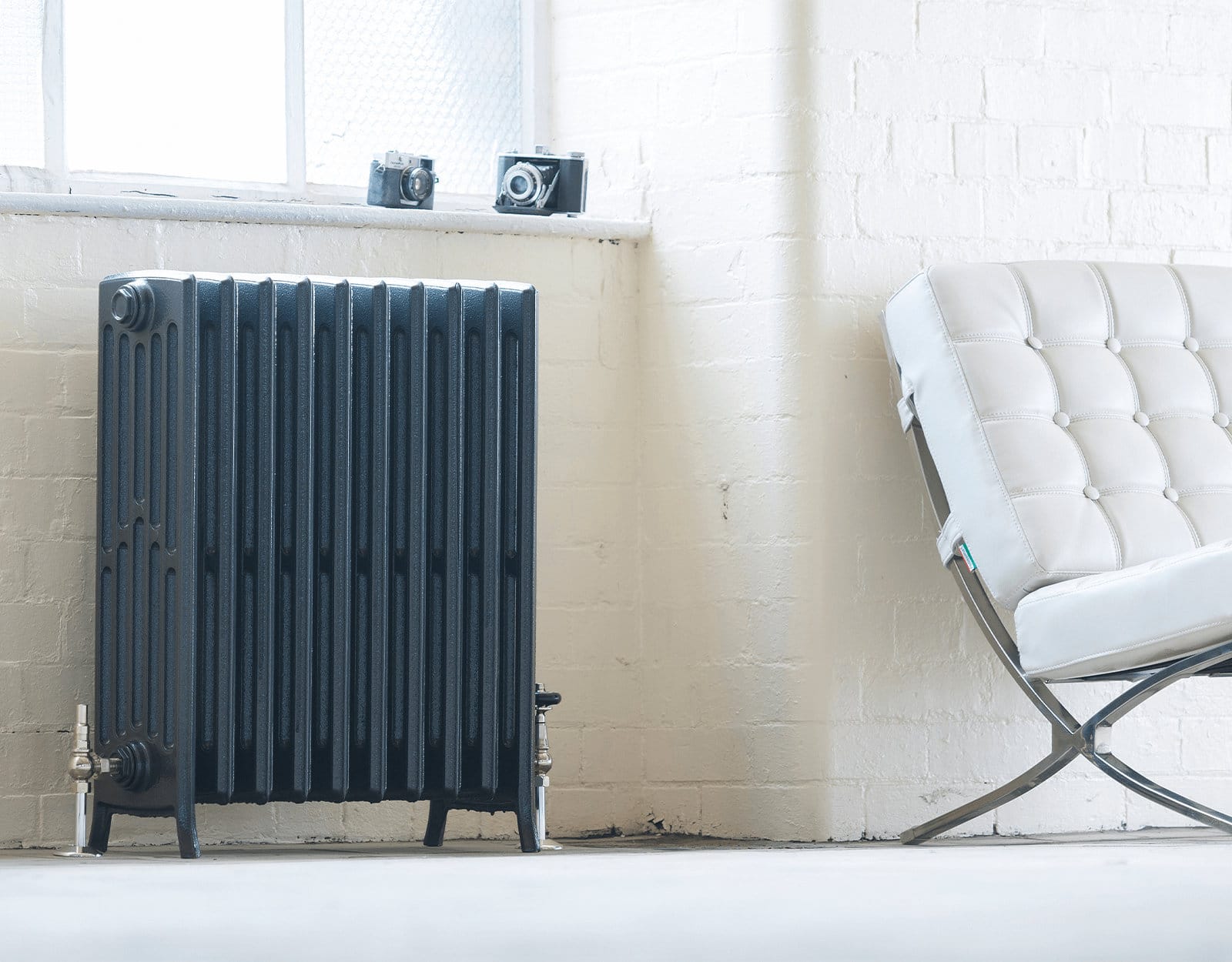

The Edwardian 6 Column

The Edwardian 6 Column Cast Iron Radiator influenced by the Edwardian era of 1901–1910, it provides high heat outputs in large areas. Its simple curved clean lines make it perfect for both modern and period homes.

Complementary to the 2 Column and 4 Column, the Edwardian range provides great flexibility when it comes to choosing the correct radiators for your project.

Arroll provide high–quality cast–iron radiators taken from an original design. Manufactured using traditional techniques and guaranteed for 10 years. All radiators can be provided fully assembled up to 1500mm. Due to the bespoke nature of our cast iron radiators we can build the radiator to your requirements, a radiator tool may be required to build the radiators onsite if over 1500mm long.

·         Pressure tested to 5 bar

·         Guaranteed for 10 years.

·         Integral feet

·         ½” 15mm BSP connections for main valves.

·         Wide range of finish options

·         All cast iron radiators supplied CE Certified to British Standards.

·         See below for all technical information



Find a dealer Download Brochure Radiator builder

Choose:

RE–660/6

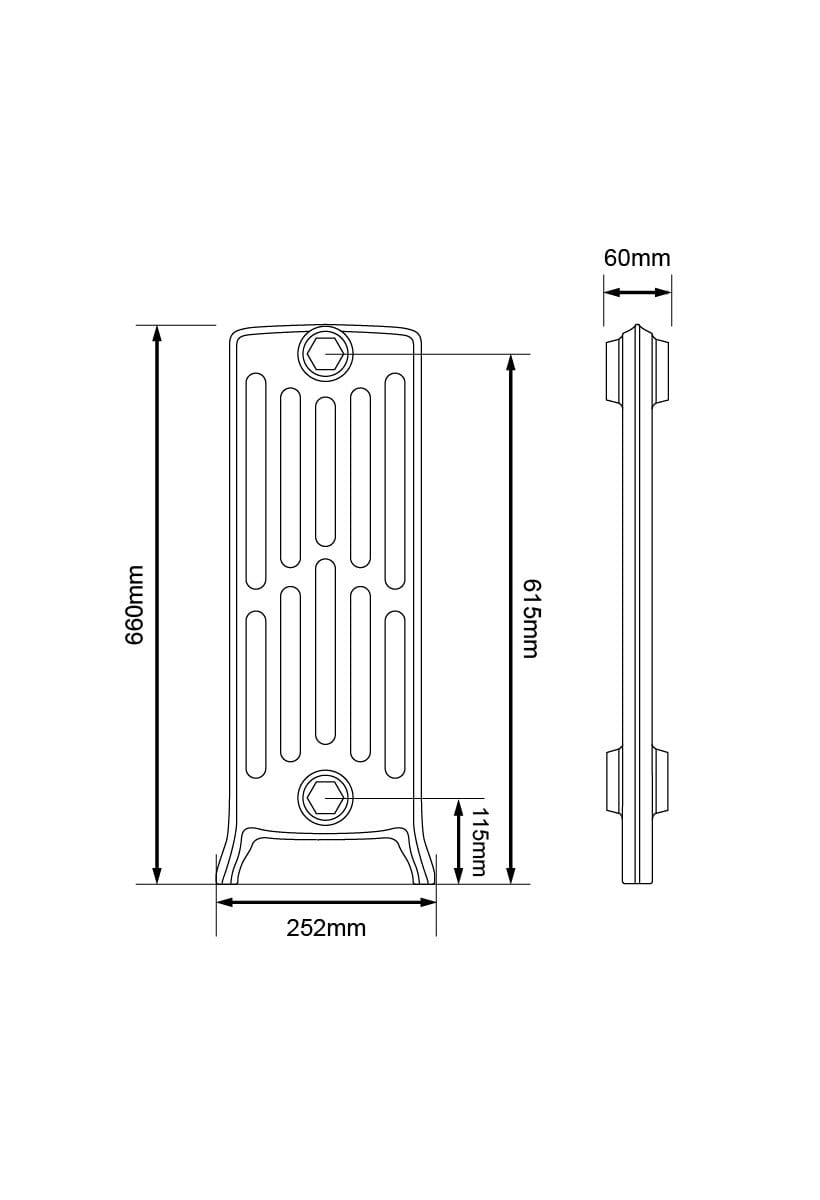

Dimensions

  • Leg Section Height

    660 mm

  • Section Length

    60 mm

  • Middle Section Height

    600 mm

  • Section Depth

    252 mm

  • Bottom Inlet To Floor

    115 mm

  • Top Inlet To Floor

    615 mm

  • Pipe Centres To Skirt

    126 mm

Heat Output

  • Delta at 50˚C

    127 Watts / 433 BTUs

  • Delta at 60˚C

    160 Watts / 547 BTUs

Weight

  • Empty weight per leg section

    9.3 KG

  • Empty weight per middle section

    8.1 KG

  • Filled weight per leg section

    10.4 KG

  • Filled weight per middle section

    9.2 KG

  • Volume per leg section

    1.1 L

  • Volume per middle section

    1.1 L
